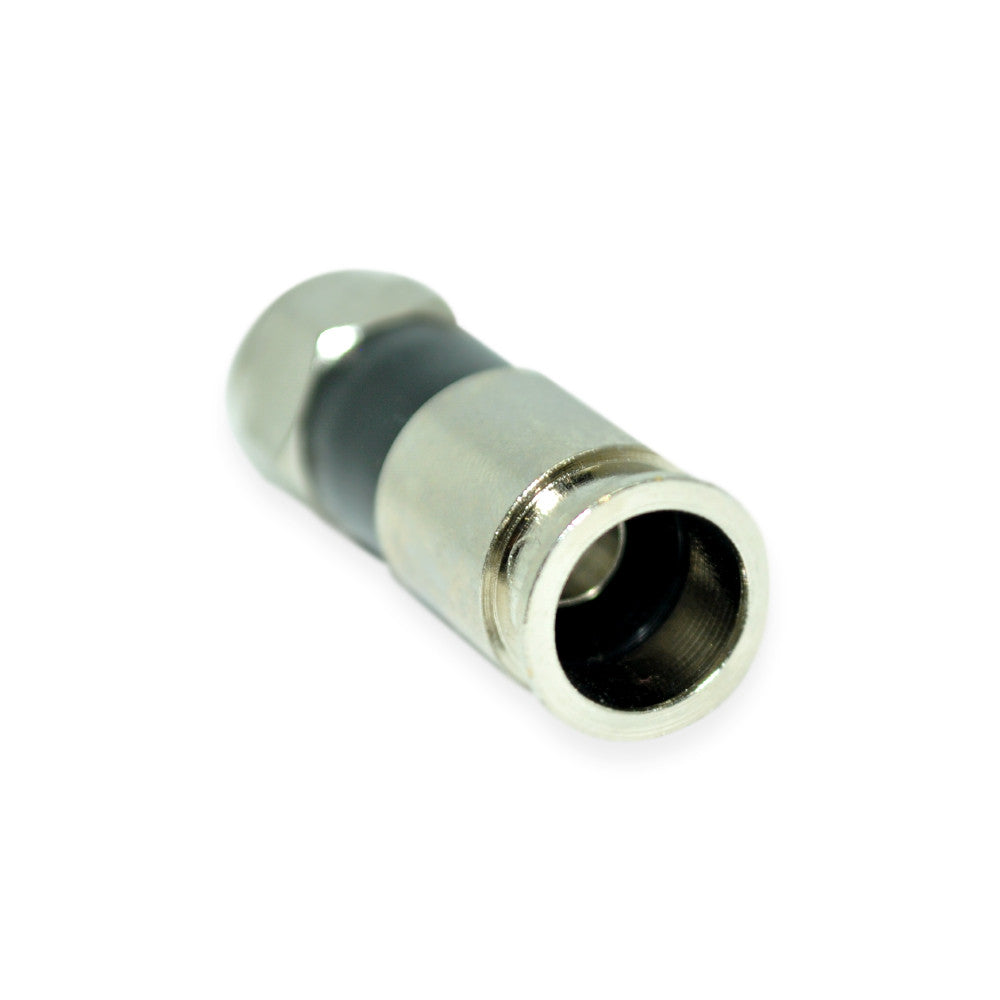

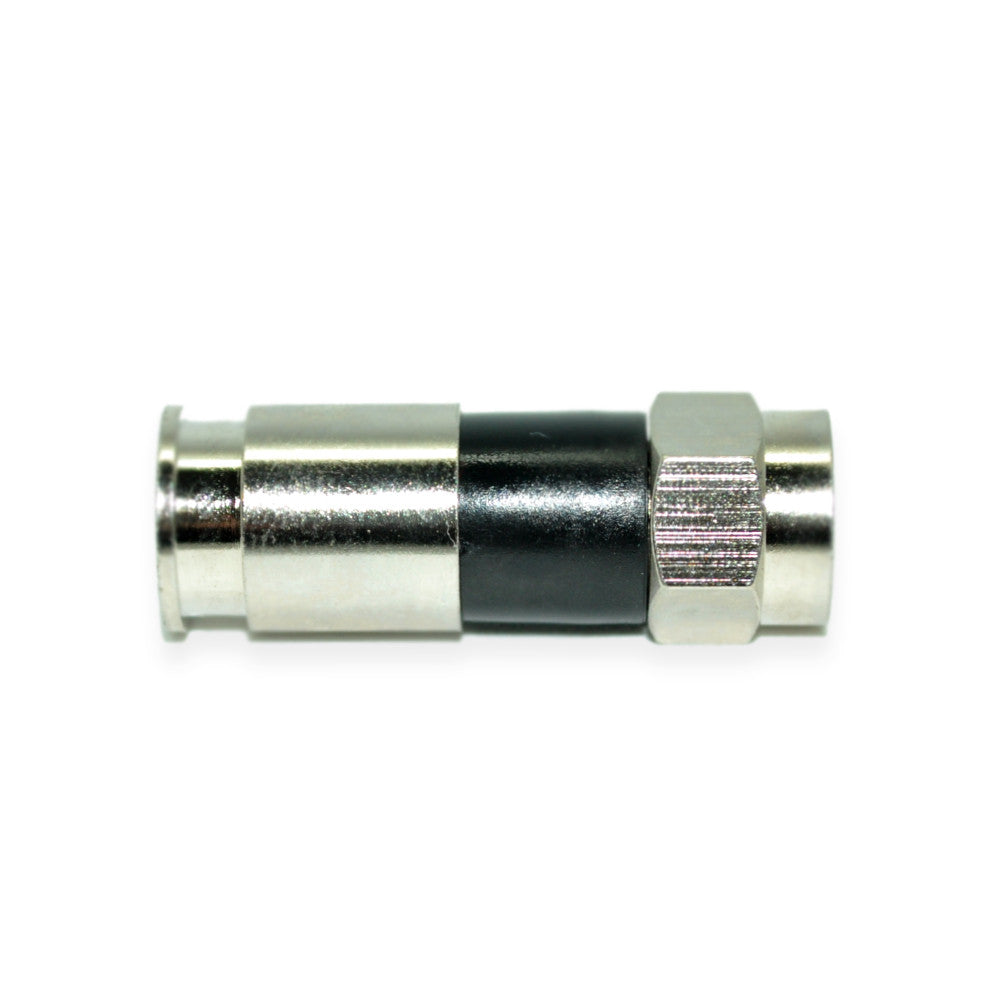

CDD RG6 Compression Connector with "O" Ring, Weather Proof, 50 Per Bag
COCD0067
Details
This is our Universal fit CDD Compression Connector with an additional "O" ring in the face of the F nut. Like all previous models its textured sleeve cylinder and the end bell capture rings prevent backing up regardless of where the end bell is located on the sleeve after compression.
The CDD Compression Connector is suitable for indoor and outdoor applications and is tested to SCTE standards and weatherproof for hostile outdoor environments. This universal connector fits any standard quad-shield, trishield or dual shield RG-6 75 Ohm coax cable.
Compression Tool Specifications
Any compression tool with a closed gap close to 21mm will work. This includes all full capture dies as well as open top designs. Tool wear is not a factor as long as the closed gap approaches 21 mm ±.
| Electrical and General Specifications: | |
| Bandwidth | 2 Mhz to 3 Ghz |
| Impedance | 75 Ohms nominal |
| Shielding Effectiveness | better than -90dB |
| Cable Preparation: |
| The coax should have a 1/4 exposed braid and 1/4 exposed center conductor. |
