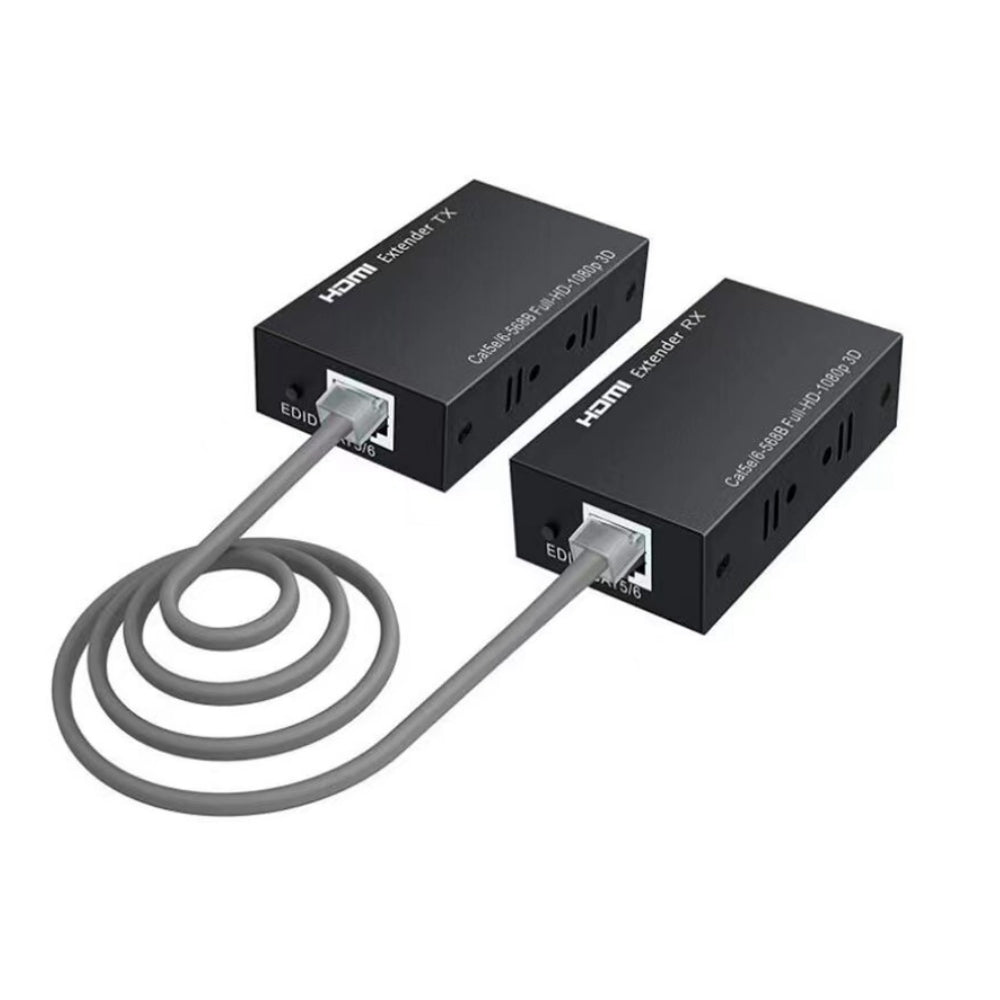

CDD HDMI Extender with IR, Over One Cat5e/6, 60 Meters, 1080P
SWCD0010
We currently have 103 in stock.
Details
This HDMI video extender allows you to extend your 3D or HD display up to 197ft (60 meters) away from your source device over a single CAT5e or CAT6 cable at a resolutions of 1080p/60Hz.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | -15℃ ~ 55℃ |
| Power | |
| Input Voltage | 125V |
| Power Supply | 2 x 5 volt, 1 amp DC Converter |
| Compatibility | |
| PC to Monitor | Yes |
| PC to TV | Yes |
| DVD to Monitor | No |
| DVD to TV | Yes |
| Connector(s) | |
| Transmitter | HDMI Input Female, RJ45 Female |
| Receiver | HDMI Output Female, RJ45 Female |
| Performance | |
| Video | 480i/ 480p/ 720p/ 1080i/ 1080p@60Hz/ 3D 1080p |
| Video Bandwidth | 165MHz Max |
| Transmission Range | Single CAT-5e cables up to 50 metres (164 ft) Single CAT-6 cables up to 60 metres (197 ft) |
| 3D | 1080p |
| Audio | DTS-HD, Dolby-true HD, DTS, Dolby-AC3, DSD |
| HDCP Compliant | Yes |
| Supports EDID 2D, 3D | Yes |
| Compatibility | |
| Sync Device and Display | Set the resolution of the source device to match the display resolution. The extender will not work if the source devices resolution is set higher than the displays capabilities |
| Environmental | |
| RoHS | Yes |
| Certification(s) | |
| CE | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.5 lbs [0.2kg] |
| Package Weight | 1 lbs [0.5kg] |
| Contents | |
| Included in Package | 1 - Transmitter |
| 1 - Receiver | |
| 2 - DC5V Power Adapter |
|
| 1 - Manual | |
