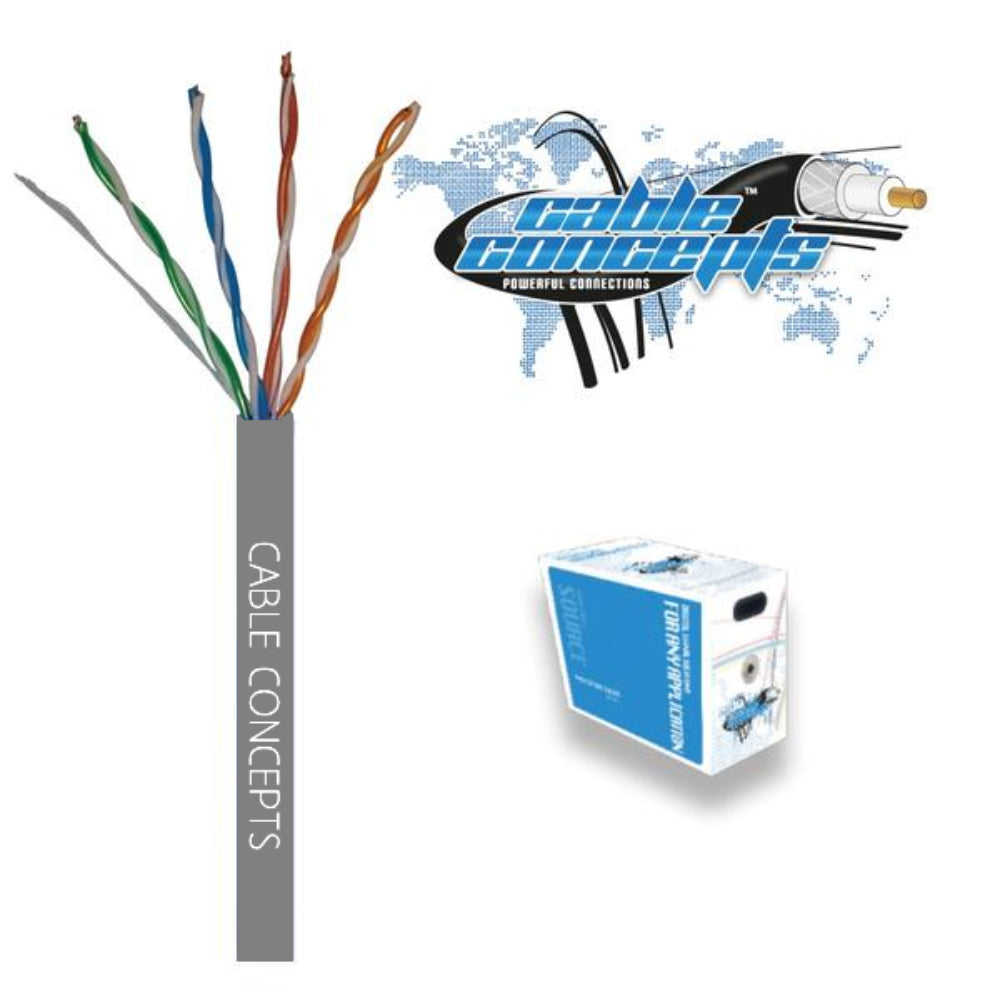

Cable Concepts Cat5E, 24 AWG, 4 Pr, FT4/CSA, 1000 Ft
WICH2105BL
Details
Cable Concepts Category 5E, ANS/TIA/EIA 568, 24 AWG, 4 Pr, CUL, CMG, FT4/CSA, 1000 Ft. Cable Concepts Category 5e Cable (Cat5e) is twisted pair cable for carrying telephony and video signals. This cable is used in structured cabling for computer networks such as ethernet. In some cases, multiple signals can be carried on a single cable; can also carry two conventional telephone lines as well as two 100BASE-TX channels in a single cable. This cable is unshielded, relying on the twisted pair design and different signaling for noise rejection, It is for indoor use, is (FT4) fire rated, but is NOT suitable for burial. This cable is CSA approved.
100% Solid Bare Copper Conductors
Pure bare copper produces a stronger signal along with better conductivity and flexibility when compared to copper clad aluminum (CCA).
| Description | 24 AWG solid bare copper conductors, Polyolefin insulation, twisted pairs |
| Construction: | 24 AWG 4PR |
| Pair Identification | |
| Pair 1: | Blue/White |
| Pair 2: | Orange/White |
| Pair 3: | Green/White |
| Pair 4: | Brown/White |
| Characteristics | |
| Installation Temperature: | 0 Degrees to 60 Degrees |
| Operation Temperature: | -20 Degrees to 60 Degrees |
| Capacitance: | 14pf/ft nominal |
| DC Resistance/Unbalance: | 28.6 ohms/1000Max/5% Max |
| Dielectric Breakdown: | 2500 Volts DC Conductor to Conductor |
| Velocity of Propagation: | PE =71% FEP =74% nominal |
| Maximum Skew: | 11ns@100 meters |
| Impedance: | |
| 1.0 - 100 Mhz | 100 Ohmx+-15% |
| 100 - 155 Mhz | 100 Ohmx+-18% |
| 155 - 200 Mhz | 100 Ohmx+-19% |
| 200 - 300 Mhz | 100 Ohmx+-22% |
| 300 - 350 Mhz | 100 Ohmx+-24% |
