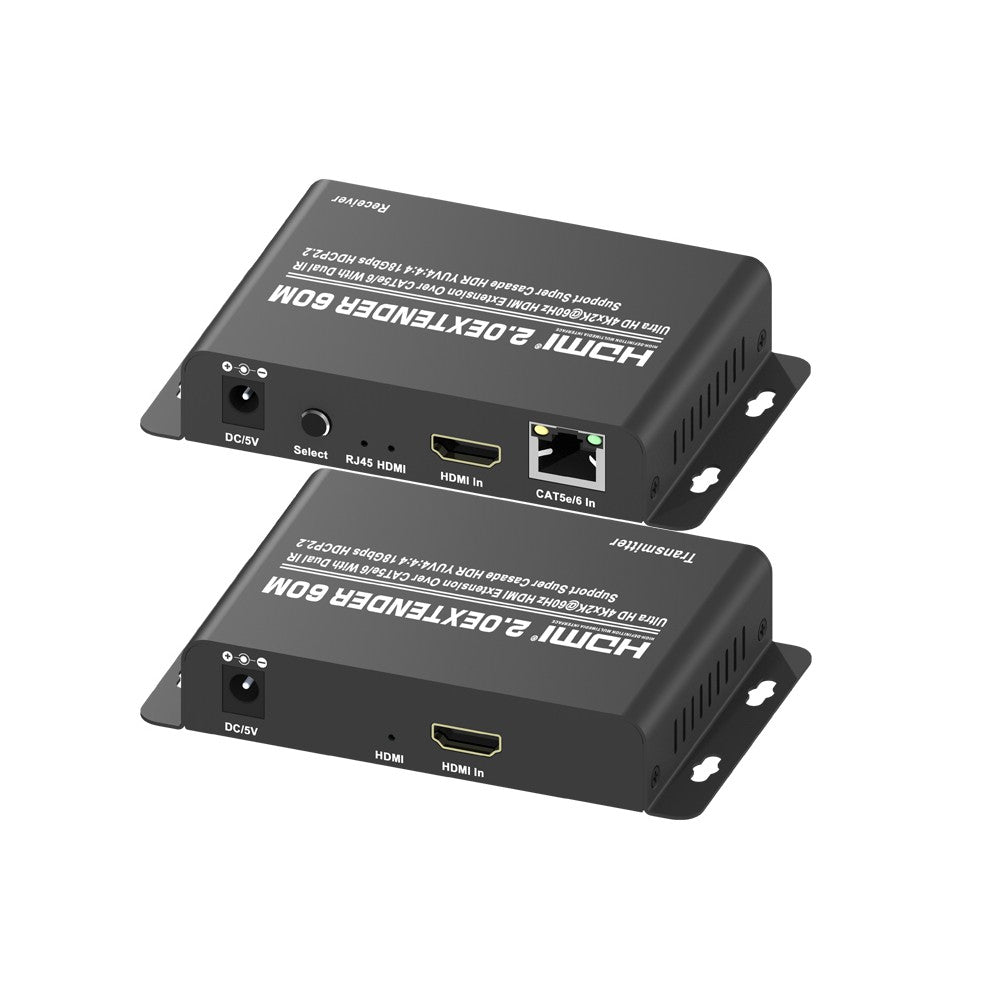

CDD HDMI Extender Over 1 Cat5e/6, 4Kx2K@60Hz, HDCP2.2, V2.0, EDID, Dual Band IR, 60 Meters
SWCD0020
We currently have 66 in stock.
Details
- This CDD HDMI 2.0 HDMI extender uses one single Cat5e/6 cable instead of HDMI cable, you can extend the 4K signal up to 60 meters. Cat6 cable is recommended
- Compliant with HDMI 2.0 and HDCP2.2 and DVI 1.0
- Supports video format up to 4K2K@60Hz with 24bit RGB/YcbCR, 4:4:4/YCBCR4:4:4 and up to 4K2K@60Hz with 12 bit YCBCR 4:4:4
- Supports 3D frame sequential video format up to 1080p@60Hz
- Supports Multi-receiver cascade transmission
- Supports 20-60 KHz IR dual re-transmitting
- Supports EDID Switch
- Audio format supports: DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Â
| HDMI Input/Output | 4K2K@60Hz/1080p/1080i/720p/576p/576i/480p/480i |
| Maximum Bandwidth | Â 600 MHz |
| Max Baud Rate | 18Gbps |
| Input Video Signal | .05-1.5 volts p-p |
| Input/output HDMI Cable Distance | 10m AWG26 HDMI Standard Cable |
| Max Working Current | 800mA |
| Power Adapter format | Input AC (50Hz, 60Hz) 100V-240V Output 5V/1A |
| Dimensions (L x W x H) | 100 x 73 x 25 mm |
