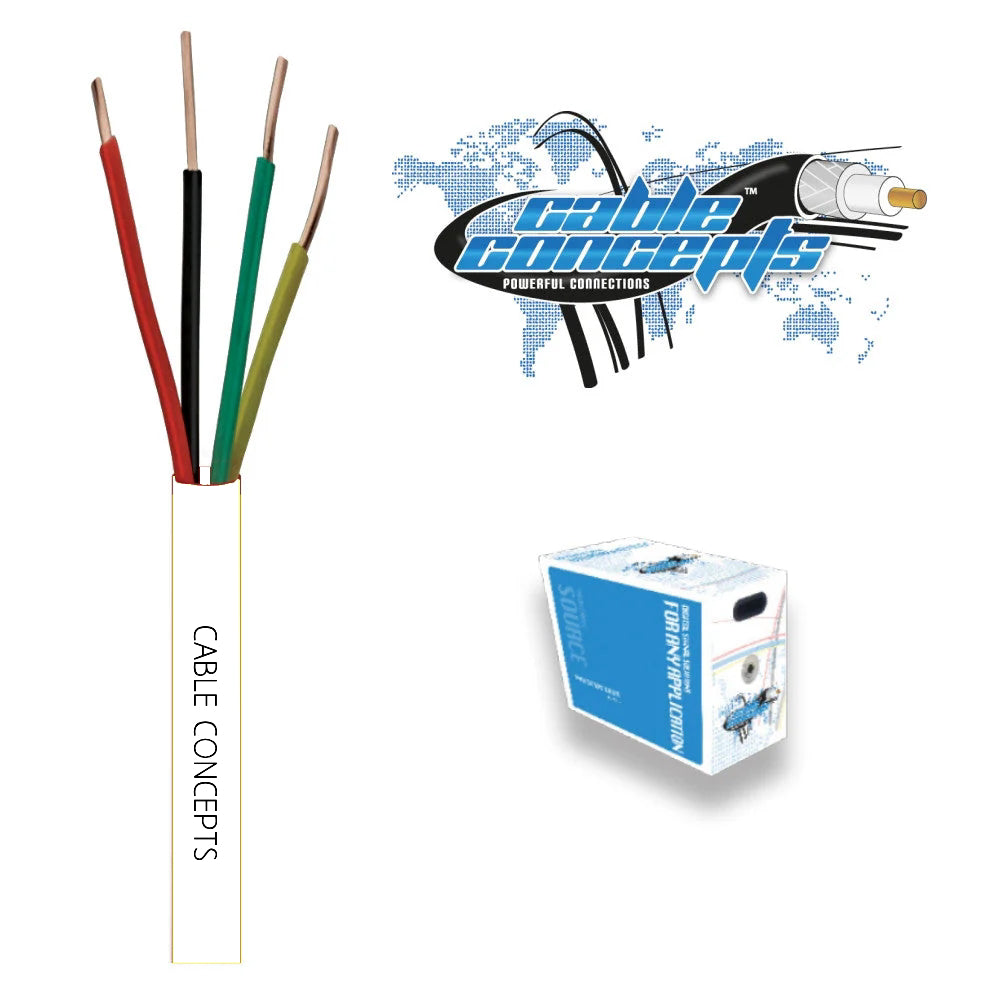

Cable Concepts Alarm Cable 22 AWG, 4 C. FT4/CSA, 1000 Ft
WICH0022WH
We currently have 32 in stock.
Details
Description |
| 22 gauge (0.64mm) 4 solid bare copper conductor; PVC insulation, ripcord PVC jacket |
Application |
| Commercial audio, Security systems, Power limited control, |
| Sound & audio, Intercom/PA systems, Broadcast and Nurse call |
Physical Dimensions |
|
| Center Conductor: | 0.64+0.01mm Solid Bare Copper |
| Insulation: | 1.10+0.05mm PVC |
| Insulation Thickness: | 0.23mm |
| Ripcord: | Yes |
| Jacket: | 3.50+0.05mm PVC |
| Jacket Thickness: | 0.38mm |
Mechanical Specification |
|
| Operating Temperature Range: | -20 to +70 |
| Cable Weight: | 14.0 Lbs/Mft |
Electrical Characteristics |
|
| Operating Voltage: | 300 VRMS |
| Impedance: | 100Nom. |
| Capacitance: | 15 pF/ft Nom. |
