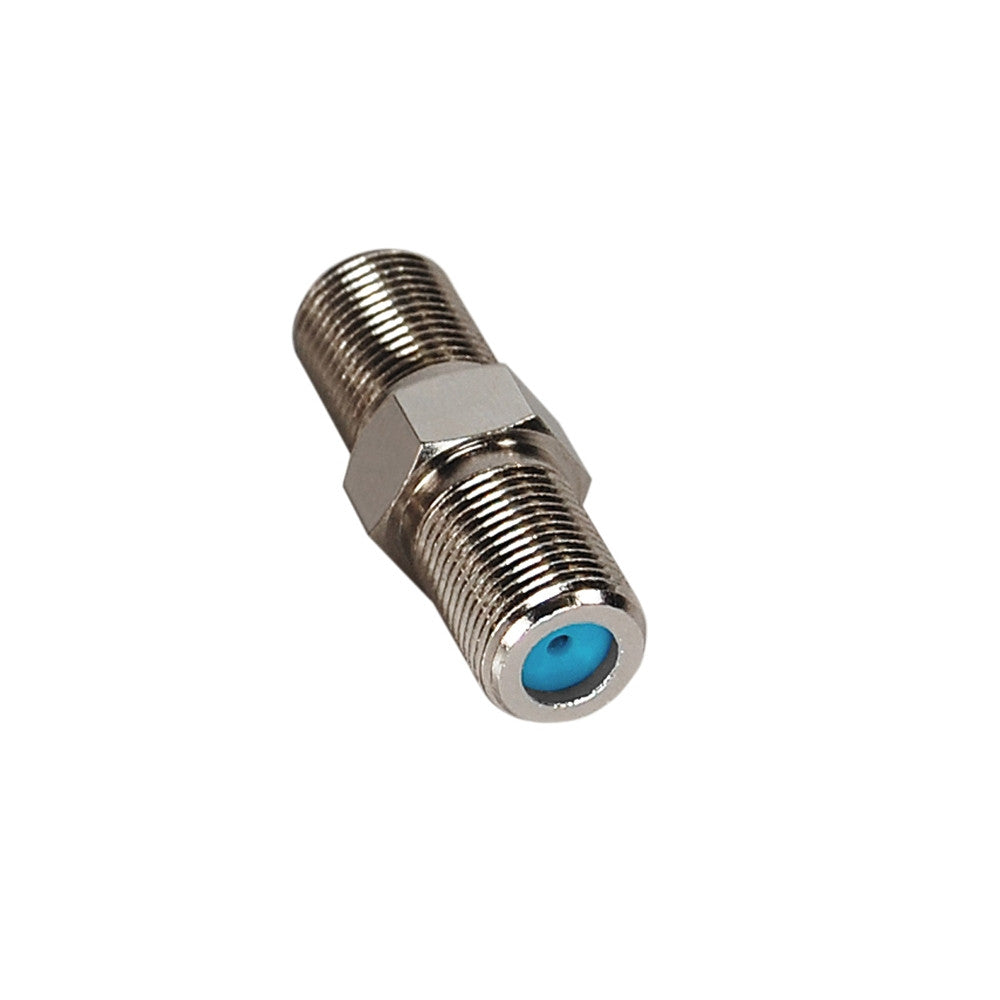

CDD F81 Splice for RG6 & RG59, Rated at 3 GHz, 100 Per Pack

The internal components of this fitting are much different from a standard VHF/UHF barrel connector. The center coax conductor indexes into a close-tollerance tube that is resilient (spring) brass and is gold plated. The close center-tube tolerance assures a tight connection, the gold plating assures a good electrical connection and the overall performance is greatly improved over standard designs. Internally, the center conductor tube is insulated from the inner skin of the barrel by a maximum air gap which results in much less RF loss. Insertion loss is extremely low and not really necessary to consider in complex systems.

• Bag of 100
• Double female barrel connector
• Use to join two cables
• Also fits to wall plates
• Used for high frequency cable runs
• 3 GHZ
• Internal components designed for high frequency
• Gold plated center conductor assures minimum RF loss & good electrical connections
• Resilient internal metals for dependable repeated insertion connections
• Can easily be used in wall plates with your addition of a thin capture nut
• Minimal insertion loss
