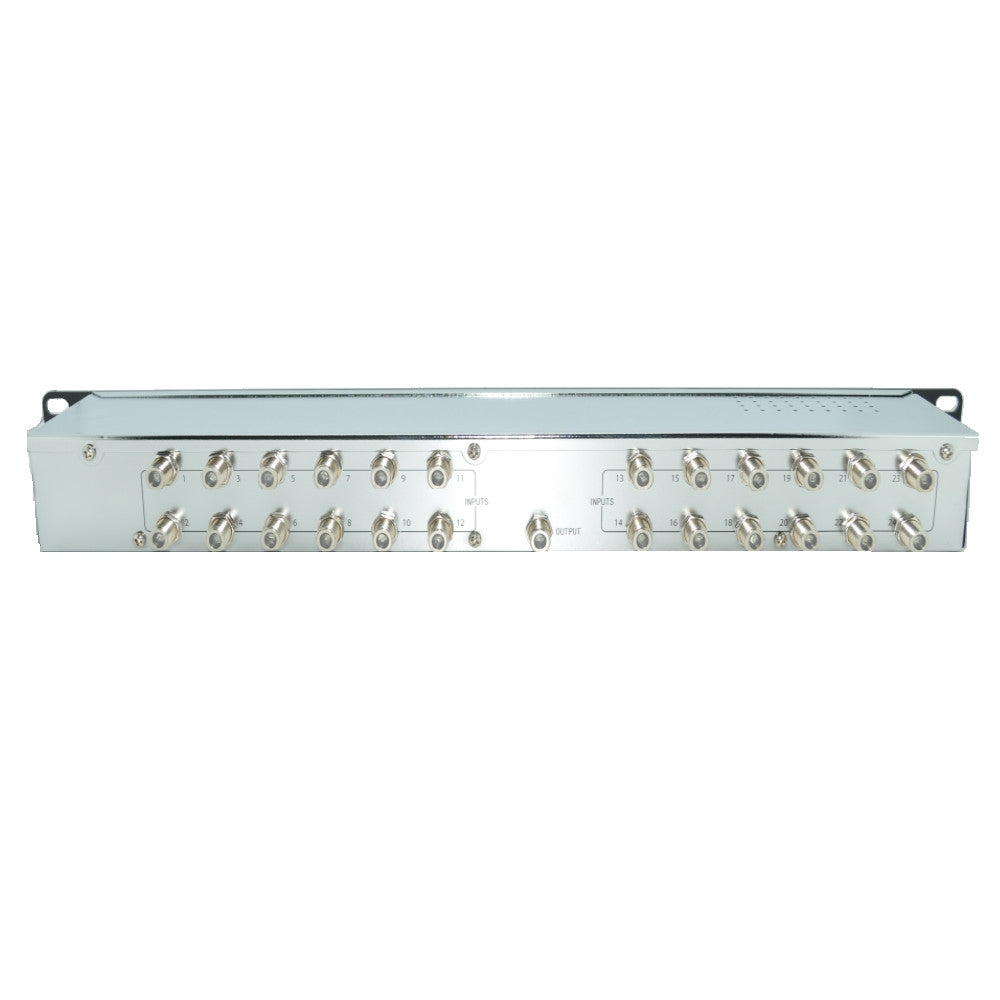

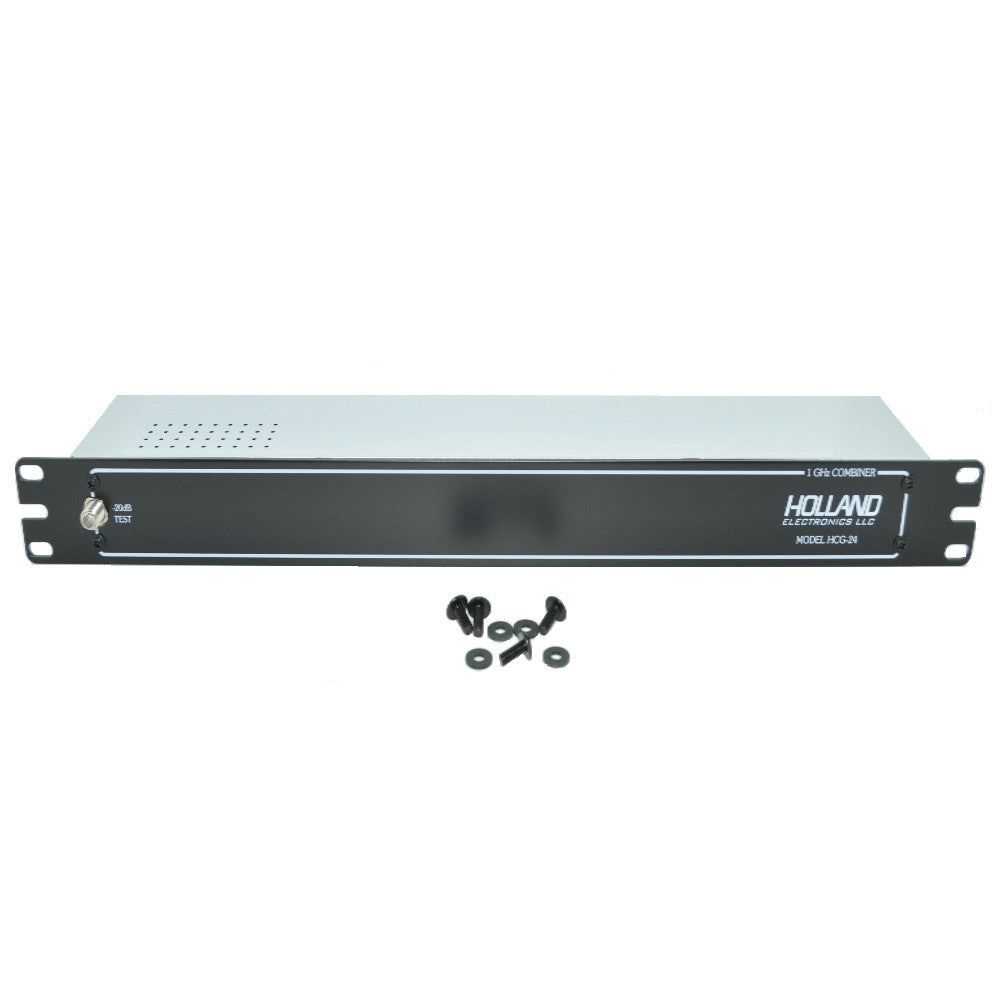

Holland Electronics HCG 24 24 Way Passive Combiner
CMHO0240
Details
The HCG-24 is a 24 input passive head-end combiner, intended to combine many modulator and processor outputs into one while maintaining the highest isolation between ports. The HCG-24 is used on systems requiring 1 GHz bandwidth.
Frequency Range: HCG-24 51000 MHz
Insertion Loss: -16 dB (±1.5dB)
Port-to-Port Isolation: 40 dB
Return Loss: 18 dB
Test Port: -20 dB
Dimensions: 19"W x 1.75"H 3"D
Frequency Range: HCG-24 51000 MHz
Insertion Loss: -16 dB (±1.5dB)
Port-to-Port Isolation: 40 dB
Return Loss: 18 dB
Test Port: -20 dB
Dimensions: 19"W x 1.75"H 3"D
