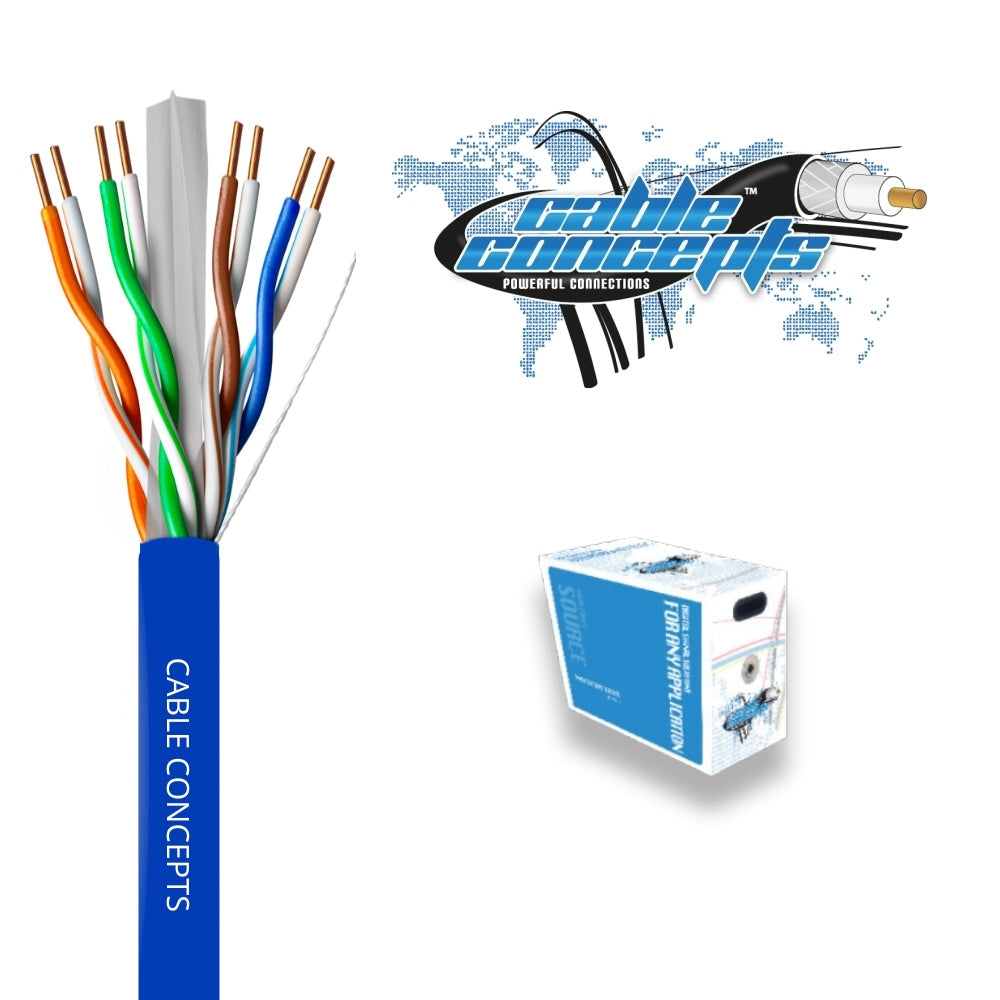

Cable Concepts Cat6A, U/UTP, 23AWG, 550MHz 4 Pr, FT4/CSA, LSZH Sheath, 1000 Ft. Blue

WICH2107BL

We currently have 31 in stock.

Details

Cable Concepts Category 6A U/UTP cables are specifically designed to deliver robust standards based performance ensuring optimum bandwidth for today’s high speed network applications. The cable is designed to support horizontal networking applications over distances up to 100 meters.

Supports Gigabit Ethernet (10GbaseT) standard. Operates at bandwidth of 550MHz. Each Category 6A U/UTP exceed the minimum specified performance for Category 6A U/UTP cables and support all CLASS EA applications.

Category	U/UTP CAT6A-4P-LSZH
Test Standard	ISO/IEC11801、TIA-568-C.2 YD/T1019
Conductor	Material	Solid-Bare Copper
	Nom.O.D.(mm)	0.565		up		+0.005
				down		-0.005
Insulation	Material	HDPE
	Diameter	1.03±0.03mm
Sheath	Thickness	0.65±0.05 mm (Avg.)
	External O.D.	6.9±0.4 mm
	Surface	Clean,Frap,Satiation
	Material	PVC/LSZH
	Color	According to the requires
Surface Printing	Letter height	3.0±0.3mm
	Color	Black/White
	Print error & Space	≤±0.5%，1m
Core Color	1 White- Blue /Blue		2 White-Orange /Orange
	3 White-Green /Green		4 White- Brown /Brown
Packing	Box
Carton dimension	38X38X26CM
Packing length	305±1.5m
Rip-cord	Yes	Drain wire			NO
Sheath Physical Properties	Before Aging Tensile Strength (Mpa) ≥8.3 Elongation(%) ≥100
	Aging Period (℃×hrs) (100.0°C±1.0)x48H
	After Aging Tensile Strength(Mpa) ≥8.0 Elongation(%) ≥100
	Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks
Electrical Characteristics (20℃)	1.0-500.0MHz Delay Shew (ns/100m) ≤45
	NVP 69
	DC Resistance max ≤76.7Ω/km at 20℃
	DC Conductor Resistance Unbalance (%) max 5.0
