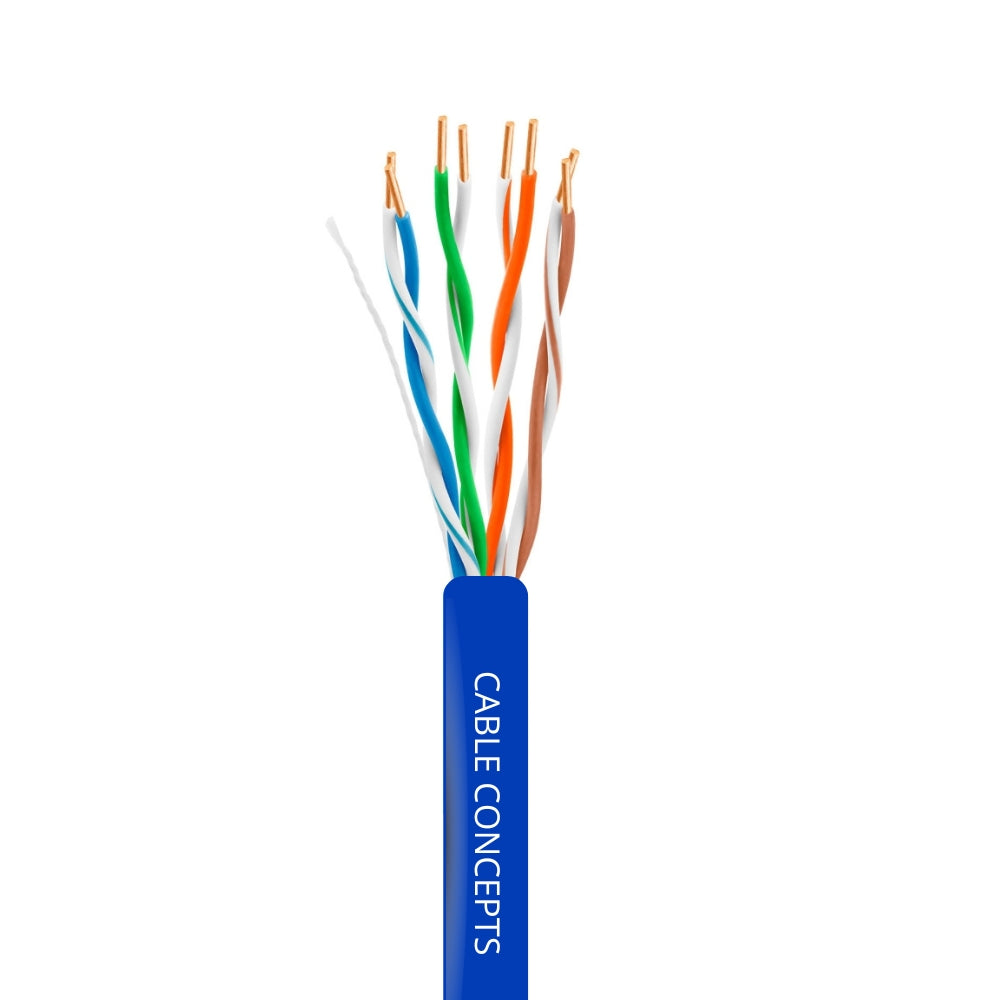

Cable Concepts Plenum Cat5e, FT6, CUL, UTP, CMP, 1000 Ft. Blue
WICH6105BL
We currently have 24 in stock.
Details
Cable Concepts CAT5e Plenum, FT6, UTP, ETL, C(ETL) CMP Ethernet Cable 350MHz, 4 Pr, 24AWG, 1000 Ft, Blue
- 100% PURE COPPER CONDUCTORS: Pure copper conductors relay a stronger signal that can survive long lengths without distortion. Pure copper is very flexible and malleable when compared to other conductors which means that you can use pure copper conductor cables in complex installation patterns without having to worry about the cable's conductors breaking inside the cable during installation or over the years.
- COMPATIBLE WITH INDOOR USE: Fire retardant, UV and sunlight resistant plenum rated jackets are designed to meet rigorous fire safety test standards and are recommended to be used in plenum spaces which are usually above suspended/drop ceilings or below raised floors.
- TANGLE-FREE & HASSLE-FREE EASY PULL BOX: Perfect for smooth, flexible and super easy installation. The whole 1000 feet (305 meters) of cable has running "ft" count which makes measuring the cable really easy.
Solid Conductors
We use Copper conductor that are made of single piece of metal. It is tougher than a stranded conductor, but rigid and less flexible than a stranded conductor.
Spline
The term spline comes from the flexible. The spline is being used to reduce cross-talk and interference between the copper conductors. Another benefit of Cat5e is that it supports much faster data throughout.
Ripcord
Ripcord is used to cut thru the jacket/casing of the wire which is called plenum jacket so you don't have to use a knife.
| CONSTRUCTION | |
| CENTER CONDUCTOR: | |
| Material: | Solid Bare Copper |
| Size: | 24AWG 0.0193''(0.49±0.005mm) |
| INSULATION: | |
| Material: | SAMP® FEP |
| OD: | 0.034''(0.87±0.05mm) |
| Color code of four pairs: | |
| 1.Brown * White/Brown | |
| 2.Blue * White/Blue | |
| 3.Orange * White/Orange | |
| 4.Green * White/Green | |
| SEPARATOR: | |
| SAMP® LSZH CROSSWEB | |
| RIPCORD: | |
| Kevlar | |
| JACKET: | |
| Material: | Plenum PVC |
| Wall Thickness: | 0.0157''(0.40mm) |
| OD: | 0.197''±0.008''(5.0±0.2mm) |
| MARKINGS: |
| CABLE CONCEPTS WICH6105BL 4PR 23AWG SOLID CAT5e PLENUM 350MHZ UTP 5011596 (ETL) C(ETL) --ETL VERIFIED TO ANSI/TIA 568C.2 RoHS COMPLIANT FT6 *****FT |
| ELECTRICAL PROPERTIES | |
| Temperature Rating: | 80℃ |
| Voltage: | 30V |
| Capacitance: | 5.6nF/100m .Nom |
| Characteristic Impedance: | 100±15% |
| Velocity of propagation: | 66% |
| DCR: Conductor: | 9.38 Ohms/100m.Nom |
| D-C Resistance Unbalance: | ≦5% |
